EC Stox – Smell Monitor on Organic & Inorganic Odors

$540 – $604

EC Stox is an industrial-grade, PPB level gas sensing device. It houses an electro-chemical gas sensor made of solid polymer with technology from EC Sense, Germany.

Available gas-type: O2, CO, TVOC, NH3, H2S, HCHO, O3, NO2, SO2, Cl2, ClO2, H2, HCN, HCl, F2, HF, Br2, PH3, C2H4O, & CH4S. Feel free to ask for other chemical gases not in the list.

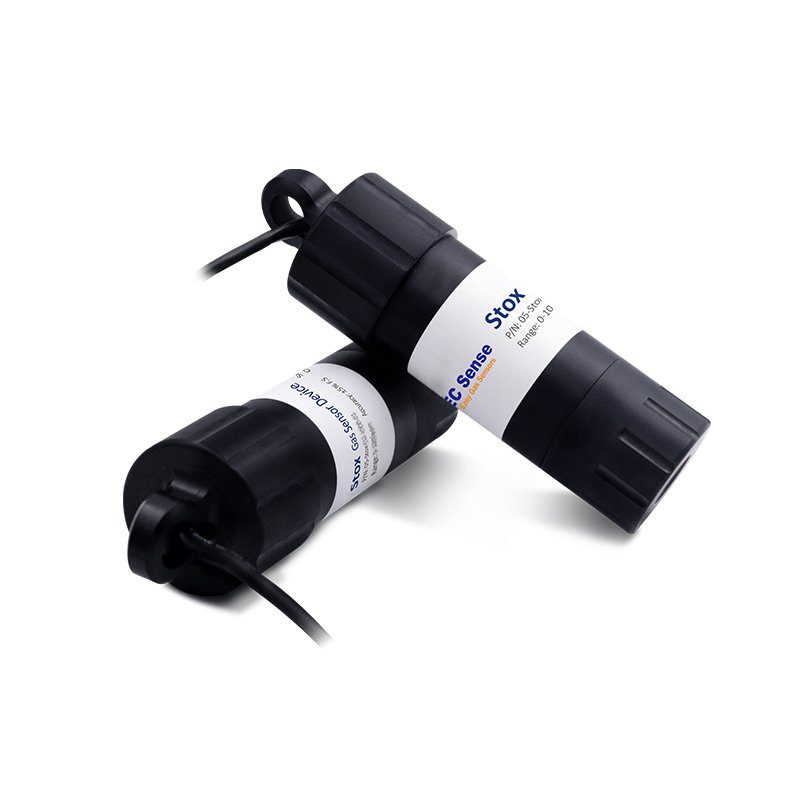

Sensor equipped in plastic probe for typical usages. Stainless steel probes with various detection methods are also available for heavily-polluted or corrosive environment upon requests.

SKU: EC-STOX Category: Tags: , , , ,
WOOFAA
Refuse Room / Garbage Room Odor Monitoring

Electro-chemical Sensor

Solid polymer electrochemical technology is a revolutionary innovation in the field of electrochemical detection.

In essence this technology is based on the principle of electrochemical catalytic reaction. As a general rule the sensors respond to the target gases and deliver a very small current signal that is usually proportional to the gas concentration.

Usually, electrochemical sensors are using either a liquid or a gel electrolyte which leads to a couple of challenges during the operation of the sensor.

High NH3 Environment Pigsty

EC Stox - German Technology

EC Stox is an industrial-grade, PPB level gas sensing device. It houses an electro-chemical gas sensor made of solid polymer with technology from EC Sense, < http://www.ecsense.de > Bavaria, Germany.

EC Odor Finder - Electrochemical Gas Sensing Device on Organic and Inorganic Odors
Download Product Brochure

Work in Hostile Environment

Industrial parts are available for gas monitoring in hostile environment, such as a continuous high ammonia environment such as a pigsty.

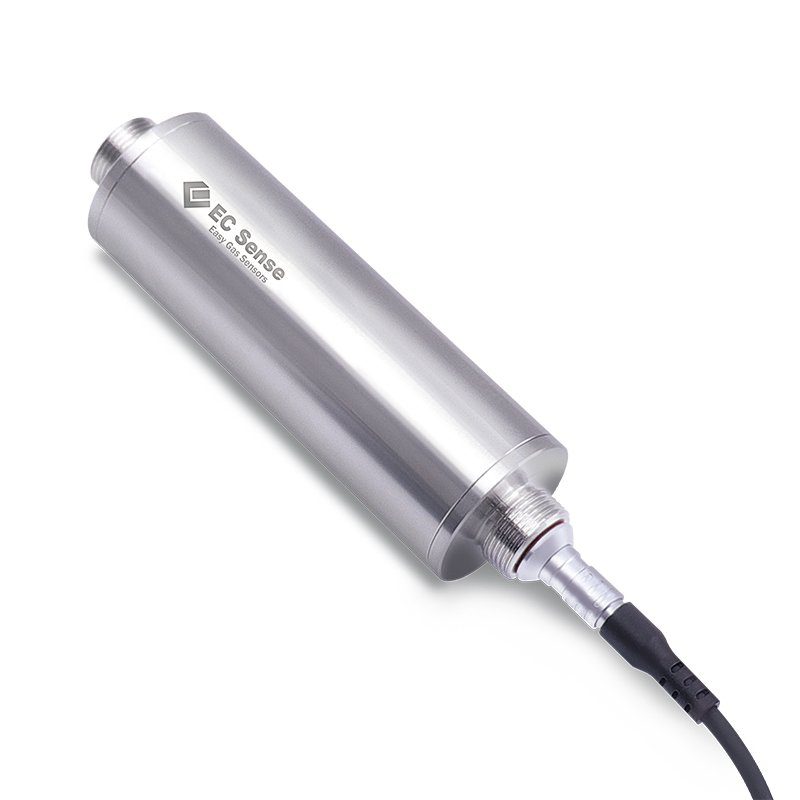

Gaseous NH3 can become acidic when coming in contact with moisture. This ECtox stainless steel probe can measure the continuously high ammonia concentration while keeping its long lifetime.

Weight 0.5 kg
Dimensions 13 × 3.9 cm
EC Stox Options

Plastic Casing, Stainless Steel Casing

Brand

WOOFAA
